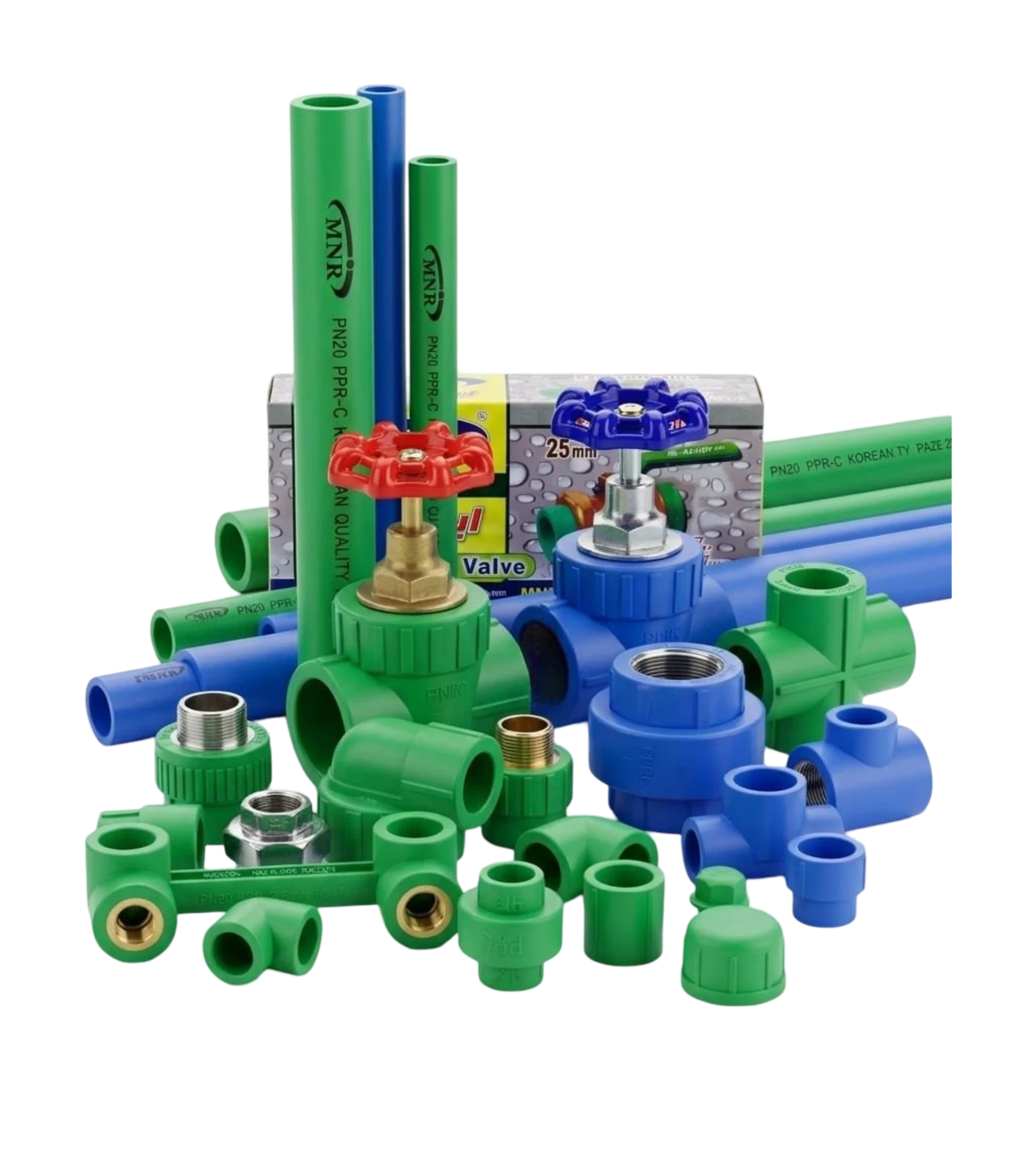

High-Pressure PPRC Piping Solutions
Engineered for high-temperature centralized hot water networks, commercial sanitary lines, and potable drinking water distribution. Manufactured from 100% virgin polypropylene random copolymer with zero calcification and thermal expansion stability.
Pressure Tolerances & Fitting Specifications
Calibrated wall thickness formulations and high-tensile brass threaded transitions designed for uninterrupted domestic and commercial sanitary networks.
PPRC Nominal Pressure Class Matrix
Continuous Thermal Range: -10°C to +90°C| Pressure Rating | Target Scope | Available Diameters | Nominal Bar Rating | Application Line |
|---|---|---|---|---|
| PN-16 Heavy Duty | Cold & Chilled Water Supply Lines | 20mm, 25mm, 32mm, 40mm, 50mm, 63mm | 16 Bar at 20°C | Indoor Cold Potable Water |
| PN-20 High Temp | Centralized Geysers & Hot Water Lines | 20mm, 25mm, 32mm, 40mm, 50mm, 63mm | 20 Bar at 20°C (10 Bar at 70°C) | High-Temp Hot Water Networks |
PPRC Fusion & Threaded Fittings Catalog
Compatible with standard socket heat fusion tooling with zero joint leakage risk.
Equal Sockets & Couplers
Seamless socket jointing ensuring uniform internal bore without frictional water head loss.

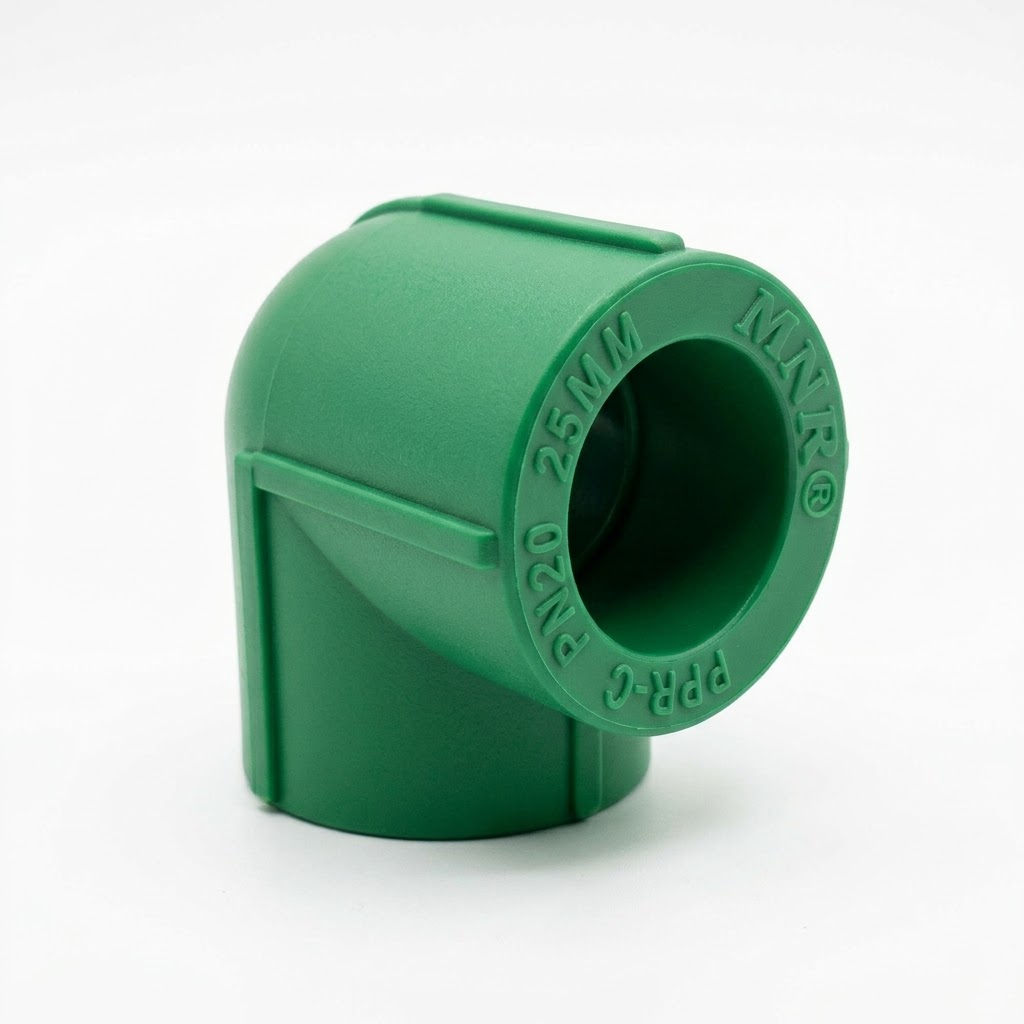

90° & 45° Elbows
Hydrodynamically contoured inner radius reducing fluid turbulence in directional turns.
Equal & Reducing Tees
Engineered branch intersections with reinforced center bodies for balanced manifold distribution.

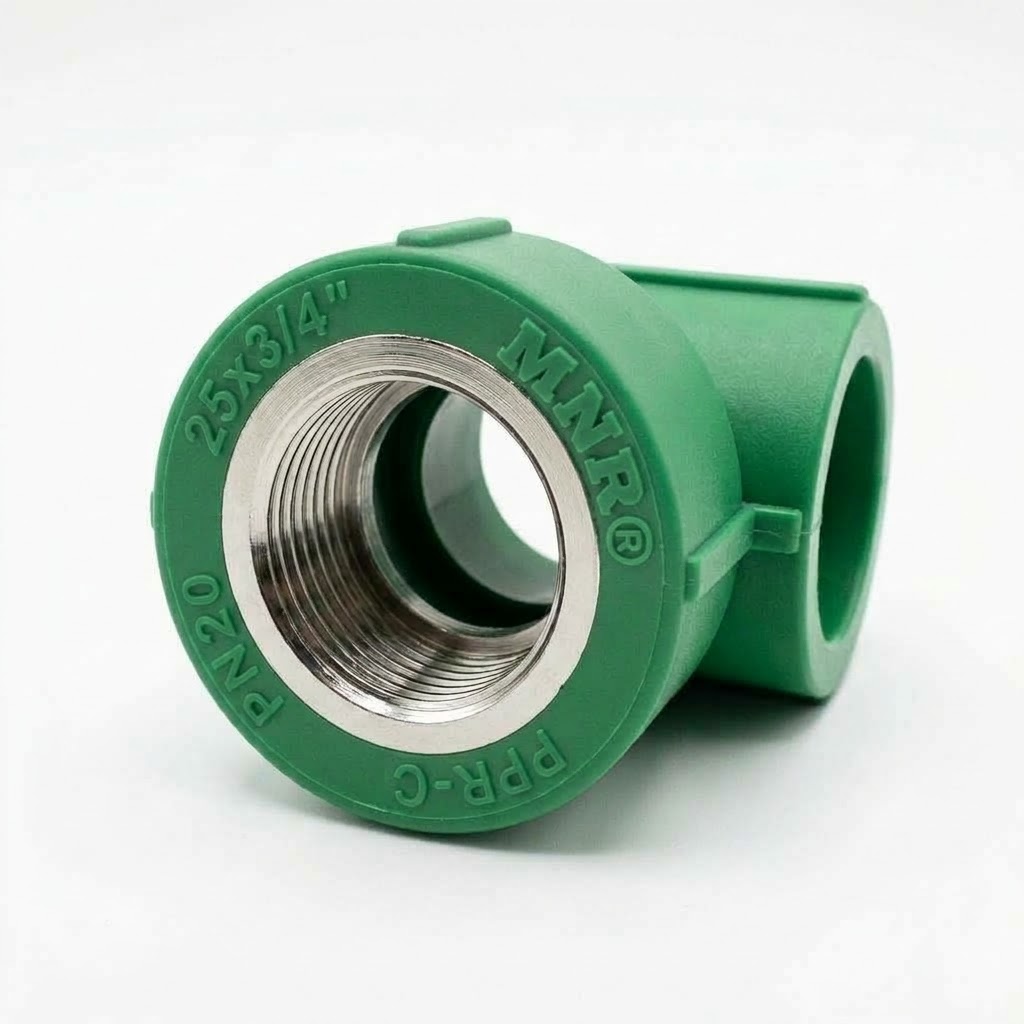

Brass Female Threaded Elbows
Heavy-duty corrosion resistant brass inserts for secure sanitary tap and mixer connections.
Brass Male Transition Sockets
Precision hexagonal brass insert molded directly into virgin PPRC body for high torque resistance.

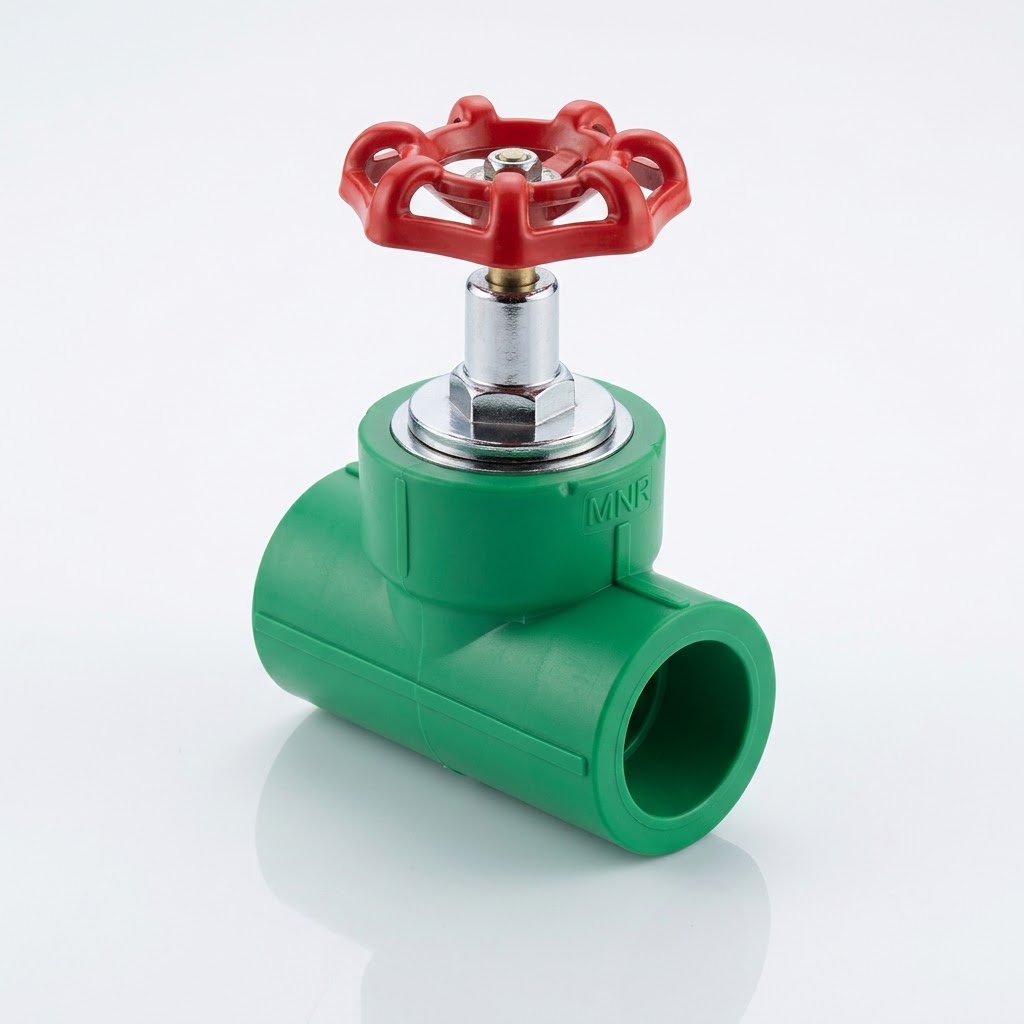

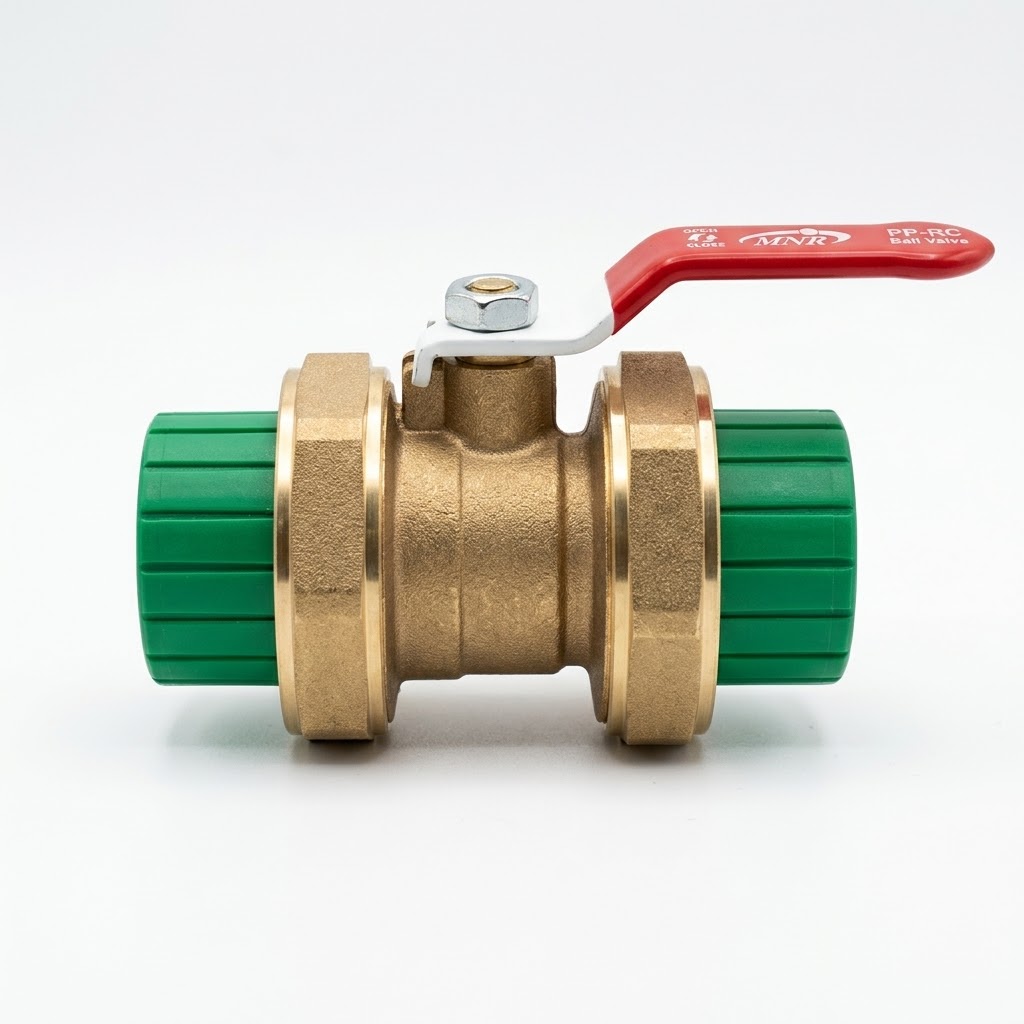

Stop Valves & Unions
Full-bore isolation stop valves and detachable maintenance unions for central utility shut-offs.
Require Complete Engineering Wall Thickness Dimensions?
Download the official MNR technical specification sheet containing SDR ratings and pressure charts.
Engineered for High-Pressure Sanitary Distribution
Advanced molecular stabilization guarantees smooth hydraulic flow, zero calcification deposits, and continuous service life exceeding 50 years under standard operating conditions.
Zero Scaling & Corrosion
Smooth internal pipe walls eliminate calcium build-up, rust, and scale formation, preserving maximum water flow over decades.
High Thermal Retention
Extremely low thermal conductivity reduces hot water heat loss by up to 80% compared to traditional metallic and galvanised pipes.
Acoustic Dampening
Thick-walled viscoelastic properties absorb hydraulic shocks, water hammering, and fluid transit noises inside building structures.
100% Non-Toxic & Inert
Pure virgin polymer random copolymer formulation guarantees safe potable drinking water with zero chemical leaching or odor.
Procuring Bulk PPRC Pipes & Fittings for Projects or Retail?
Get official wholesale bundle pricing, dealer discounts, and dispatch details directly from our factory desk.
